SPECIFICATIONS

3 adjustable functions: IP68 waterproof

AHD 1080P: CVBS dual signal switchable

Brand Name: SMARTOUR

Certification: CE

Choice: yes

Guiding Line: Yes

High-concerned chemical: none

Length of Video Cable: 6M

Lens Material: Plastic + Glass

Material: ABS

Mini screw mount: easy hidden installation

Origin: Mainland China

Shell Material: Plastic

Wire or Wireless: Wire

semi_Choice: yes

ultra wide fisheye lens: reduce blind spots

1. This camera works with DC12V vehicles only, NOT for 24V trucks.

2. Car monitor / head unit is NOT included.

3. Please confirm your car stereo supports AHD signal before purchase.

4. Professional installation is recommended if unfamiliar with automotive wiring.

Important Notes

1 × AHD 1080P Car Fisheye Camera
1 × Video & Power Extension Cable

Package Includes

Note: If your car stereo does NOT support AHD function, please use CVBS mode. Go to factory setting of your car player and select corresponding video signal.

1. Red Wire: Connect to positive power (reversing light positive)

2. Black Wire: Connect to ground / negative

3. Yellow RCA Connector: Video output, connect to car head unit

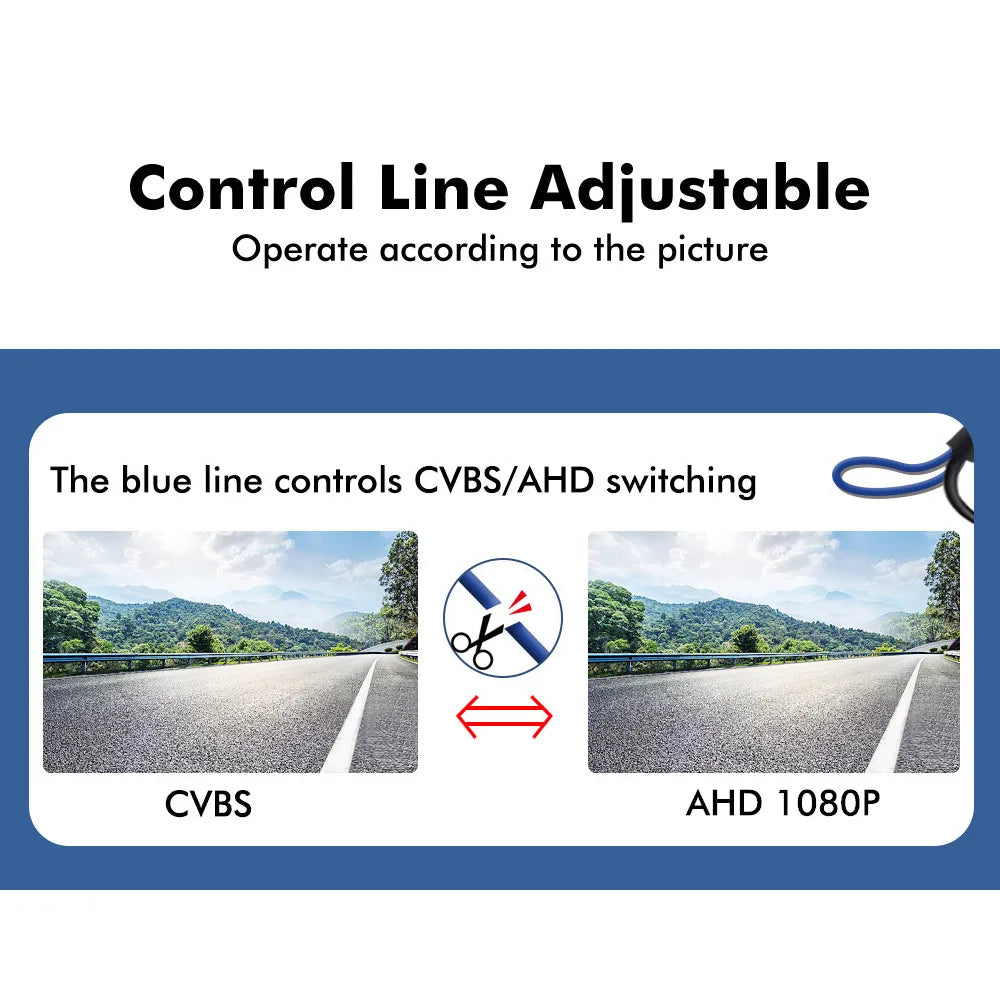

4. Blue Wire: AHD/CVBS signal control

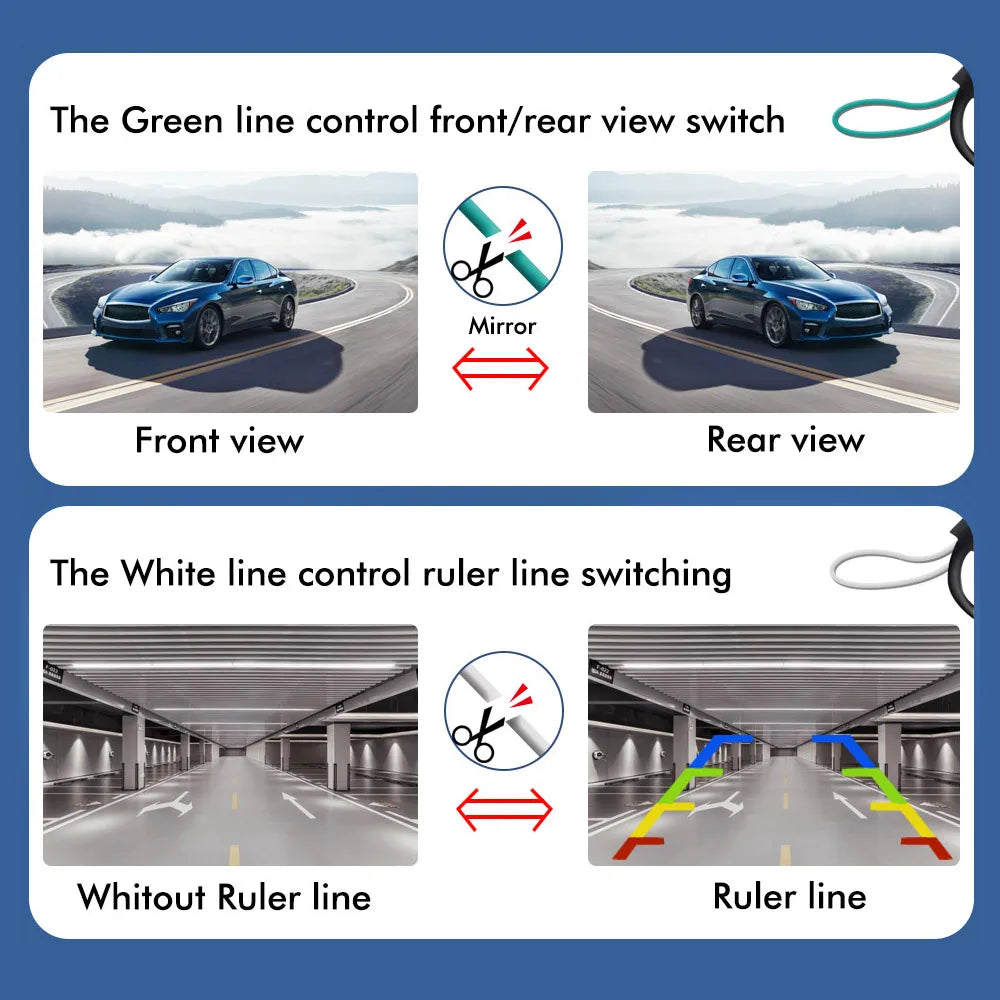

5. Green Wire: Front view / rear mirror view control

6. White Wire: Parking guide line on/off control

Wiring Instructions

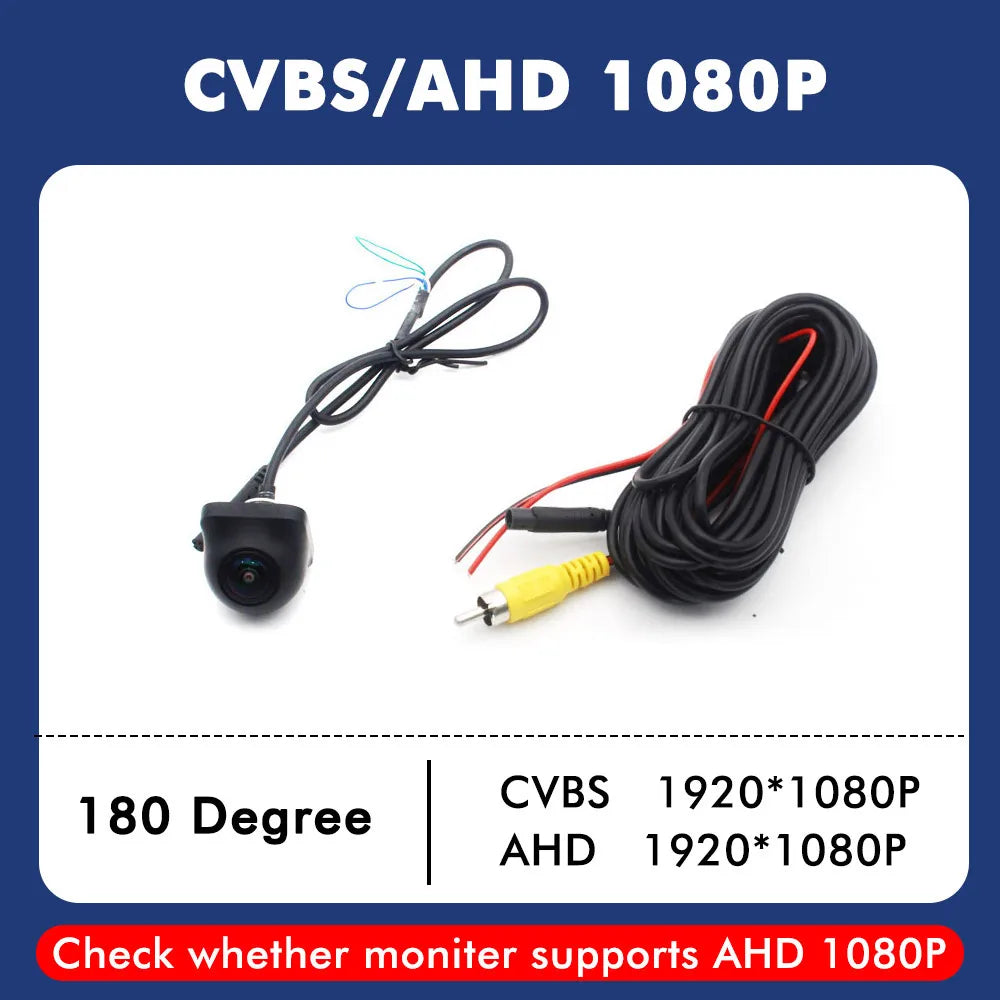

• Resolution: AHD 1080P / CVBS (switchable)

• Viewing Angle: 180° Fisheye Lens

• Waterproof: IP68

• Working Voltage: DC 12V

• Function: Night Vision, Front/Rear View Switch, Parking Line Switch, AHD/CVBS Signal Switch

• Installation: Screw mount

Product Specifications

• Blue wire: Switch AHD/CVBS signal

• Green wire: Toggle front view / rear mirror view

• White wire: Turn parking guide ruler line ON/OFF
  ✅ IP68 Waterproof & Dustproof, works for rainy & harsh weather
  ✅ HD Night Vision Chip, clear image in dark underground parking lots
  ✅ Mini compact screw-mount design, easy hidden installation
  ✅ Universal DC12V for most passenger cars

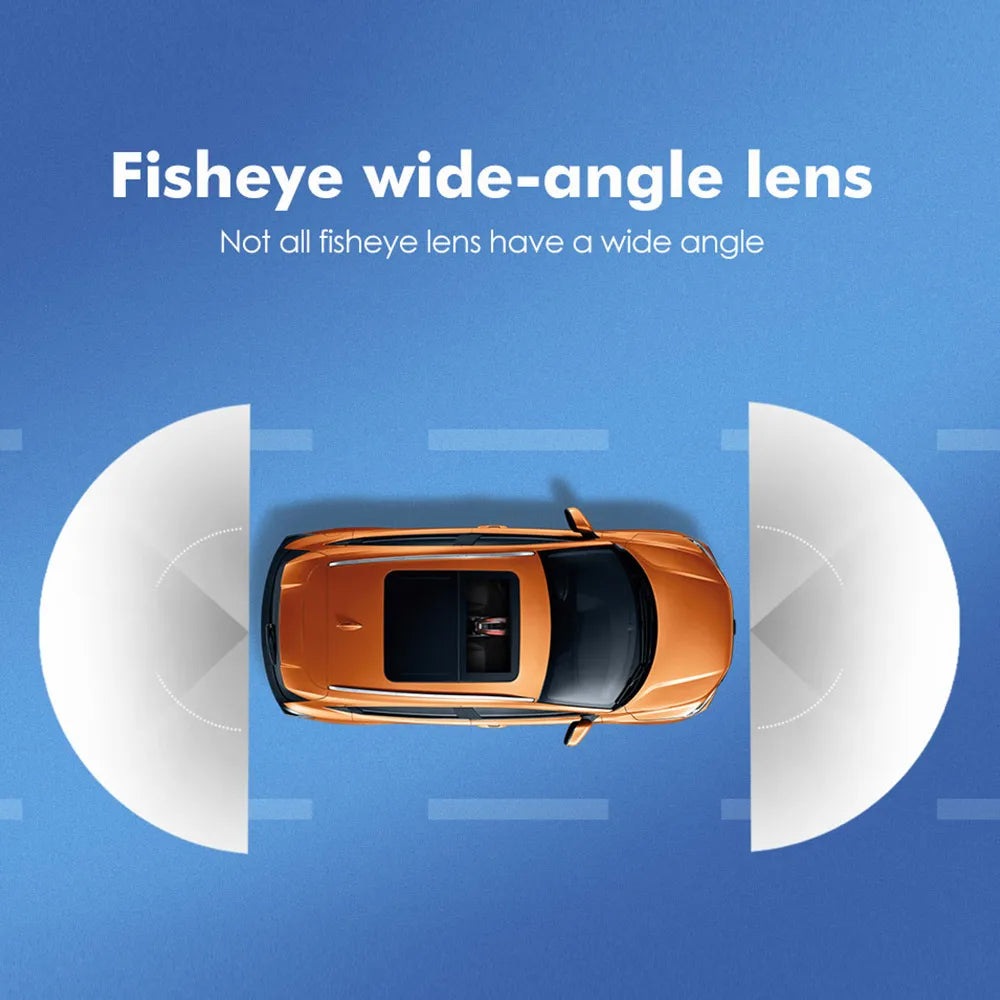

✅ 180° Ultra Wide Fisheye Lens, minimize blind areas
✅ Dual Signal Mode: AHD 1080P & CVBS switchable, compatible with most car radios
✅ 3 Control Wires:

Main Features

This AHD 1080P car reversing camera features 180° ultra-wide fisheye lens, supports AHD 1080P / CVBS signal switching by cutting the blue control wire. It can switch front view / rear mirror view via green wire, and turn parking ruler lines on/off through white wire. IP68 waterproof & HD night vision design delivers crisp images day and night, greatly reducing vehicle blind spots for safer parking.

Product Introduction
